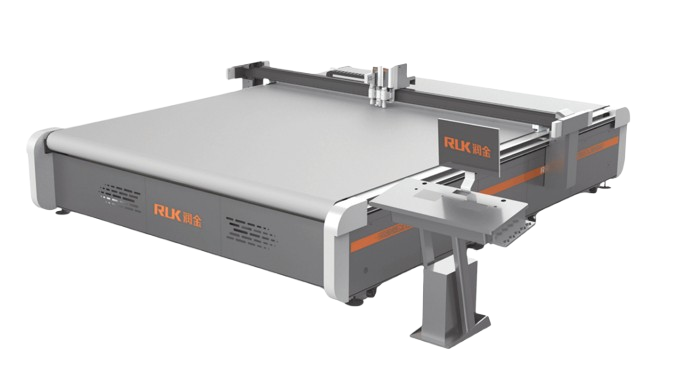

RUK
Cutting System
RS///G
Solutions
| Machine Model | MTC06-3232GR | MTC06-3232GR | MTC06-5542GR | MTC06-6052GR |
| Air Pump Power | 9KW | 9KW | 2*9KW | 2*9KW |
| Fixed Power | 14KW | 14KW | 14KW | 14KW |
| Effective Cutting Area | 3200*3200mm | 3500*3000mm | 5500*4200mm | 6000*5200mm |
| Overall Size | 6800*4100*1250mm | 7100*3900*1250mm | 9100*5100*1250mm | 9600*6100*1250mm |
| Working Environment | Temperature: 0 -35 Humidity: 35%-80% | |||
| Fixed Method | Vacuum Adsorption | |||
| Transmission System | High-end servo motor drive, linear guide rail, rack and pinion helical gear | |||
| Operating Voltage/Power | AC 380V/220V+-10%50HZ | |||
| File System | HPGL/PLT/DXF/AI/EPS/TIF/PDF/JPG/XML/CUT repeatability < 0.01mm software resolution | |||
| Cutting Speed | 90m/min (cut according to different materials) | |||
| Cutting Thickness | ≤50MM (according to different materials) | |||
| Standard Tools | High-speed oscillating tool, universal cutting tool, kiss-cut tool, CCD automatic positioning system, cursor | |||
| Optional Tools | Pen, V-CUT, creasing wheel, milling tool set, 50MM foam cut tool | |||
| Cutting Material | PVC TPU PU leather, felt belt, imitation leather, coated cloth, mesh rubber, woven fabric, knitted fabric, PET, corrugated, honeycomb panel, cardboard, knife scraping cloth, photo, soft film | |||
