CGS ORIS
FLEX PACK

PROOFING AND PROTOTYPING
ON ORIGINAL SUBSTRATE

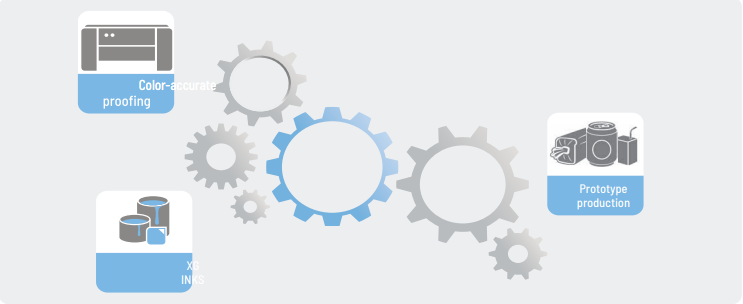

Process Image

Shrink sleeves, uncoated labels and corrugated board – there are a lot of applications in the market where many users have been searching for a solution enabling proofing on original substrate, but up until now nothing suitable was available.

The new FLEX PACK system was especially developed for “direct-to-substrate proofing” in the packaging sector and offers everything you need to produce perfect packaging proofs and mock-ups quickly, easily and cost-effectively.

PROOFING & PACKAGING MOCK-UPS SAMPLES :-

Sample Products

Benefits at a glance

  • Unique system for packaging proofs & mock-ups
  • No Proofing Media Cost
  • Print Resolution – 1440 x 1440 dpi
  • Hot Air Drying System
  • Printing Speed – 12x12 Inch in 10 Minutes
  • Packaging-related spot color management
  • Maximum Media Thickness 1.3 mm
  • Minimum Media Thickness 8 µm
  • Ink – Resin (Solvent Based Pigment Ink)

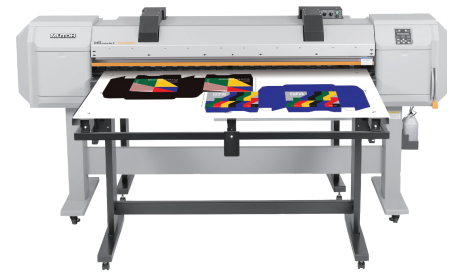

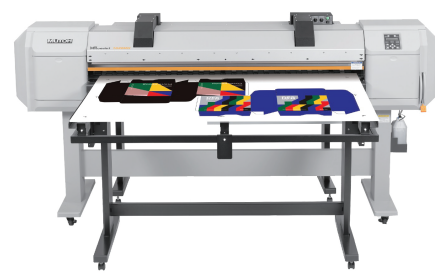

Mutoh VJ-1628 MP 64" Printer

Piezo Variable Drop | C, M, Y, K, O, G, B, W

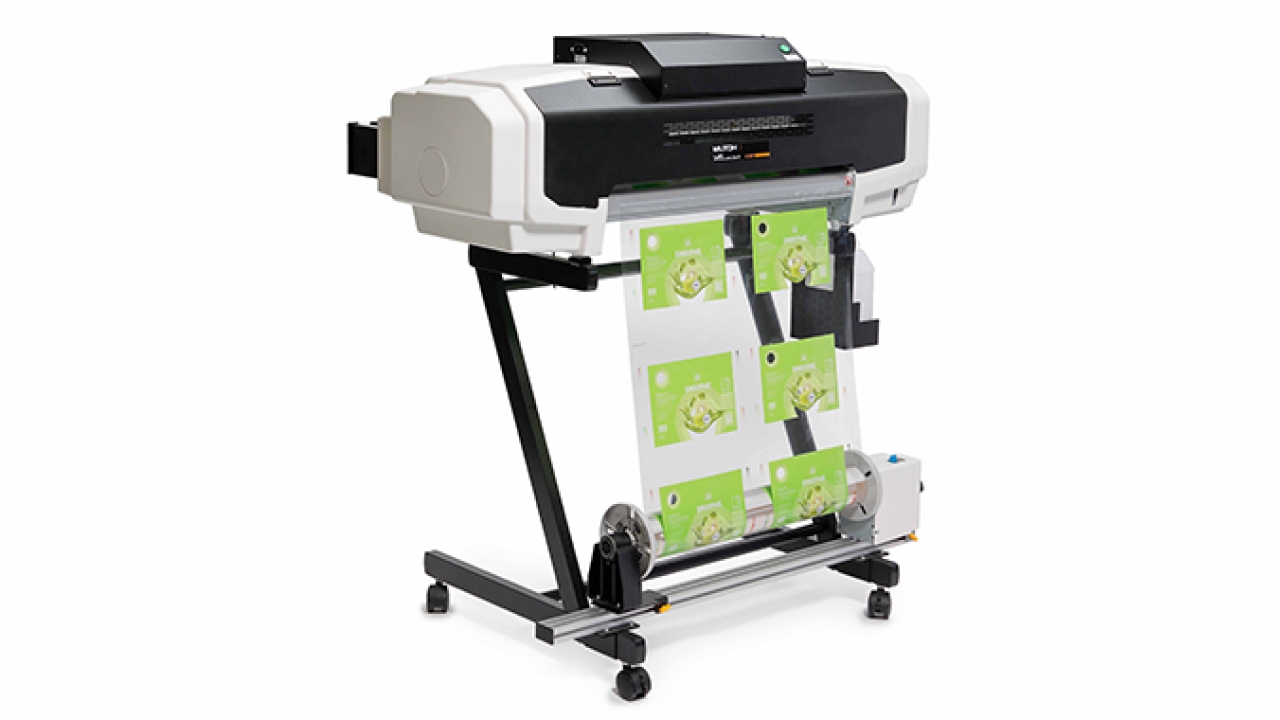

Mutoh VJ-628 MP 24" Printer

REAL SUBSTRATE PROOFING SOLUTION

We would like to introduce real substrate proofing solutions. Currently, the interest in this solution is growing rapidly and people are extremely interested in the system.

It does not require any special coating or intermediate film. The printer will directly print on your actual substrate, which you are using on an offset, flexo, or gravure machine.

Especially for anything flexible, since you can even print on extremely thin films, down to 8 µm, but also uncoated cartons, label stock, metal sheet etc.

Our XG special inks expand the gamut, i.e., OGB (Orange, Green & Blue), so the printer will be 8 colours - C, M, Y, K, O, G, B + White, to attain maximum Pantone and special color accuracy.

Ink is resistant to heat, stretching, and bending. The ink doesn’t crack easily, making it ideal for packaging prototyping. You can print on extremely thin films down to 10 µm, uncoated cartons, label stock, IML, Mattpet, metal sheet, art coated paper, greyback, food grade paper, texture paper etc. There is no limitation on the media type and no special coating is required before printing.

Printer Information

Printer : MUTOH VJ-628MP (Made in Japan)

Color Management Proofing RIP : CGS ORIS FlexPack (Germany)

Important Printer Specifications

  • Printhead – Epson DX7
  • Ink – Rasine
  • Maximum Print Resolution – 1440 x 1440 dpi (16 pass)
  • Print Technology – Drop-on-demand Micro Piezo Inkjet Technology
  • 8 Colours – K, C, M, Y, White, Orange, Blue, Green
  • Maximum Printable Width – 24" (630mm)
  • Supports both Cut Sheet & Roll Media with Take-up Reel System
  • Maximum Media Thickness – 1.3 mm
  • Minimum Media Thickness – 8 µm
  • Ink Drying – Hot Air Drying System
  • Speed – 12x12 inch print in 10 minutes
  • Print Cost without White – 12x12 inch print cost 1.3 AED
  • Print Cost with White – 12x12 inch print cost 3.6 AED

Watch Videos

Direct-to-substrate Proofing with Mutoh Printer
https://www.youtube.com/watch?v=LiBIf2xQuB8

Revolutionizing Packaging Printing
https://www.youtube.com/watch?v=YwuPVzU7lok&t=1s

Carton Printing
https://www.youtube.com/watch?v=Dd9oj_Jv4gk

Metal Printing
https://www.youtube.com/watch?v=5ZClWbaohL4

Shrink Sleeve Printing
https://www.youtube.com/watch?v=JclFpyGVfew

If you are interested, we can output your artwork on your actual substrate for sampling. Please let us know how we can proceed further to implement this next-generation proofing technology at your place.
